Thiết bị đo điện trở HiTESTER Hioki RM3543(10mΩ~1000Ω)
15/8/2023
93 lượt xem

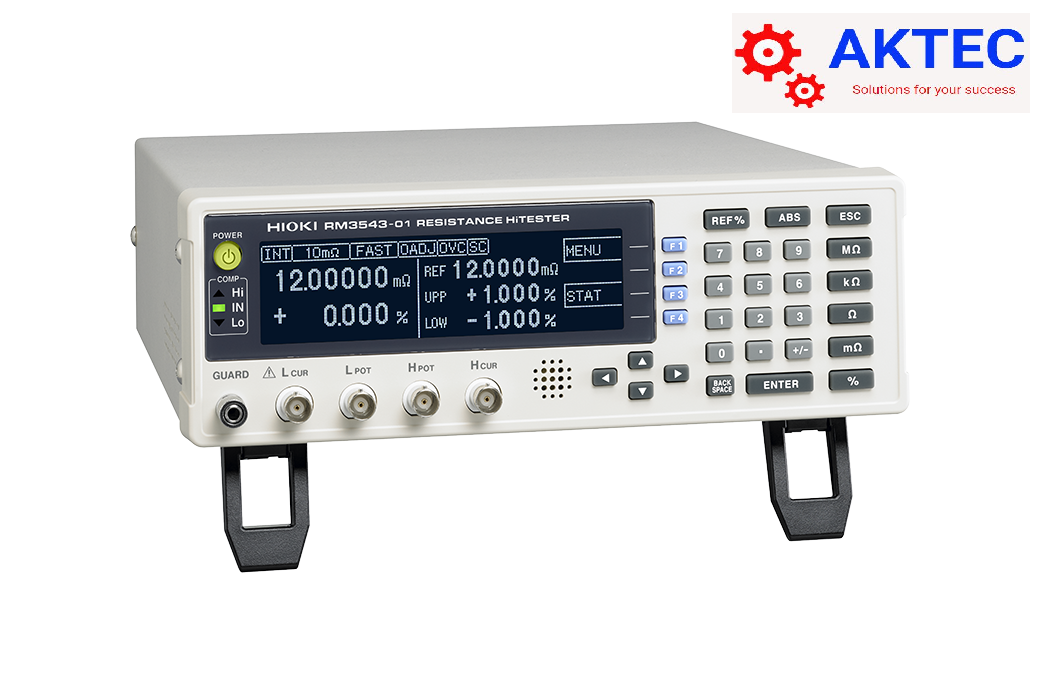

Máy đo điện trở HiTESTER Hioki RM3543(10mΩ~1000Ω)
Thông số kỹ thuật:
Độ chính xác đảm bảo trong 1 năm, thời gian đảm bảo độ chính xác sau hiệu chỉnh thực hiện bởi Hioki: 1 năm
| MEASUREMENT METHOD | Four-terminal, constant-current DC | |||||
|---|---|---|---|---|---|---|
| RESISTANCE RANGE | 10 mΩ (Max. 12.00000 mΩ, 0.01 μΩ resolution) to 1000 Ω range (Max. 1200.000 Ω, 1 mΩ resolution), 7 steps | |||||
| DISPLAY | Monochrome graphic LCD 240 × 64 dot, white LED backlight | |||||
| MEASUREMENT ACCURACY | [at 10 mΩ range, with SLOW mode, average 16 times settings] ±0.060 % rdg. ±0.001 % f.s. |
|||||
| TESTING CURRENT | [at 10 mΩ range] 1 A DC to [at 1000 Ω range] 1 mA DC | |||||
| OPEN-TERMINAL VOLTAGE | 20 V DC max. Note: Voltage when not measuring is 20 mV or less, with current mode set at PULSE and Contact Improver Setting set at OFF/PULSE (measured with a voltmeter having 10 MΩ) | |||||
| SAMPLING RATE | FAST, MEDIUM, SLOW, 3 settings | |||||
| INTEGRATION TIME | [at 10 mΩ range, default value] FAST 2.0 ms, MED 5.0 ms, SLOW 1 PLC, Setting range: 0.1 ms to 100.0 ms, or 1 to 5 PLC at 50 Hz, 1 to 6 PLC at 60 Hz Note: PLC = one power line cycle (mains wave-form period) |
|||||
| OTHER FUNCTIONS | Comparator (compare setting value with measurement value), Delay, OVC (offset voltage compensation), Average, Measurement fault detection, Probe short-circuit detection, Improve contact, Current mode setting (A pulse application function that applies current only during measurement), Auto-memory, Statistical calculations, Settings monitor (when using two instruments, a difference in settings causes warning notification), Retry, Trigger function. etc,. | |||||
| INTERFACES | External I/O, RS-232C, Printer, GP-IB (Model RM3543-01) | |||||
| EXTERNAL I/O | Trigger, Hold input, Comparator output, Settings monitor terminal, Service power output +5V, +12V, etc. | |||||
| POWER SUPPLY | 100 to 240 V AC, 50/60 Hz, 40 VA max. | |||||
| DIMENSIONS AND MASS | 260 mm (10.24 in) W × 88 mm (3.46 in) H × 300 mm (11.81 in) D, 3.0 kg (105.8 oz) | |||||
| ACCESSORIES | Power cord ×1, EXT. I/O male connector ×1, Instruction manual ×1, Operation guide ×1 | |||||
